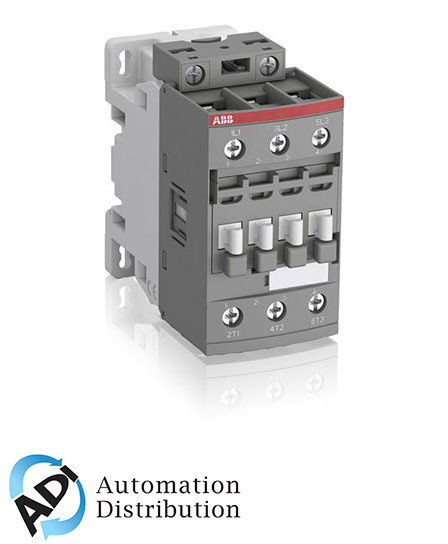

ABB AF26Z-30-00-20 3-Pole Contactor with Wide Voltage Range and Built-In Surge Protection
ABB
$125.57
The ABB AF26Z-30-00-20 af26z 3p contactor is designed for efficient control of power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This versatile contactor features an electronic coil interface that accommodates a wide range of control voltages, from 12 to 250 V DC, and 24 to 250 V AC, allowing for global application without the need for coil changes. The AF26Z contactor is equipped with built-in surge protection, eliminating the need for additional suppressors, and is compliant with SEMI F47-0706 standards for voltage dips and sags. Its block type design includes 3 main poles and the option for front and side-mounted auxiliary contact blocks, ensuring flexibility and ease of integration. The contactor is capable of controlling motors up to 11 kW at 400 V AC or 15 hp at 480 V UL, and can switch power circuits up to 45 A. With its wide control voltage range and reduced energy consumption, the AF26Z-30-00-20 offers a reliable and compact solution for various industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- DC Operation 12 ... 20 V
- Spec Sheet:
- View
