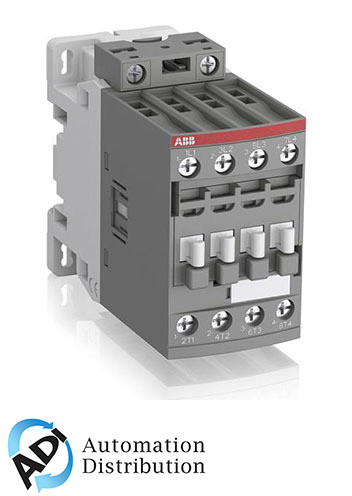

ABB AF38-40-00-13 4-Pole Contactor, 100-250V AC/DC, with Built-in Surge Protection and Global Voltage Compatibility
ABB
$153.46
The ABB AF38-40-00-13 is a versatile 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC. Ideal for managing non-inductive or slightly inductive loads, such as resistance furnaces, this contactor features an electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. With only four coils covering these voltages, it eliminates the need for coil changes, making it suitable for global applications. The AF38-40-00-13 includes built-in surge protection, negating the need for additional suppressors, and boasts a block type design with 4 N.O. main poles. It supports both AC and DC operation and can be expanded with front and side-mounted auxiliary contact blocks. This contactor is capable of controlling motors up to 11 kW at 400 V AC and switching power circuits up to 55 A, making it a reliable choice for various industrial applications. Additionally, a wide range of accessories is available to enhance its functionality.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
