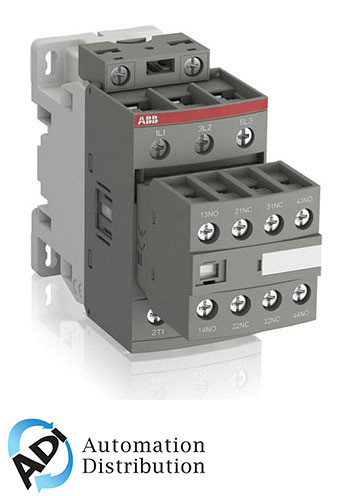

ABB AF38Z-30-22-23 AC Non-Reversing IEC Contactor, 3-Pole, 100-250 VAC/VDC, 32.2A with 2NO+2NC Auxiliary Contacts
ABB
$209.28
The ABB AF38Z-30-22-23 is a high-performance AC non-reversing IEC contactor from the AF series, designed to handle demanding applications. This contactor features a 3-pole configuration with a coil voltage range of 100-250 VAC/VDC, making it versatile for various electrical setups. It supports a maximum current of 32.2A and is equipped with magnetic coil type for reliable operation.
Key specifications include auxiliary contacts configured as 2NO and 2NC, and a screw termination for secure and straightforward connections. The contactor is capable of general-purpose switching up to 50 Amps and UL motor switching at 40 Amps. It supports motor control with a maximum horsepower of 10 HP at 200/208V and 230/240V, 20 HP at 460/480V, and 25 HP at 575/600V, making it suitable for a wide range of industrial motors.
The compact dimensions of this contactor are 3.39 inches in height, 1.77 inches in width, and 3.03 inches in depth, with a net weight of 13.05 ounces, ensuring it fits well in various enclosures and setups. Ideal for robust industrial applications, the ABB AF38Z-30-22-23 contactor offers reliability and efficiency, backed by ABB's renowned engineering and quality.
