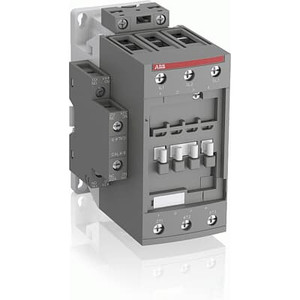

ABB AF52-30-00-13 Contactor: 3-Pole, 54A, 100-250V AC/DC with Built-In Surge Protection and Wide Voltage Range
ABB
$170.91
The ABB AF52-30-00-13 contactor is a versatile and reliable solution for controlling power circuits up to 690 V AC and 220 V DC. Designed for 3-phase motors and non-inductive or slightly inductive loads, this contactor features an electronic coil interface that accepts a wide range of control voltages, from 24 to 500 V AC/DC. With only four coils covering these voltages, it simplifies global applications by eliminating the need for coil changes. The AF52-30-00-13 is equipped with built-in surge protection, negating the need for additional suppressors, and features a block type design with 3 main poles and options for front and side-mounted auxiliary contact blocks. It supports both AC and DC operation and offers a wide array of accessories for customization. Capable of controlling motors up to 22 kW at 400 V AC or 40 hp at 480 V UL, and switching power circuits up to 100 A (AC-1) or 80 A UL general use, this contactor ensures efficient operation even in unstable networks, thanks to its ability to manage large control voltage variations and reduce panel energy consumption.
- Spec Sheet:
- View
