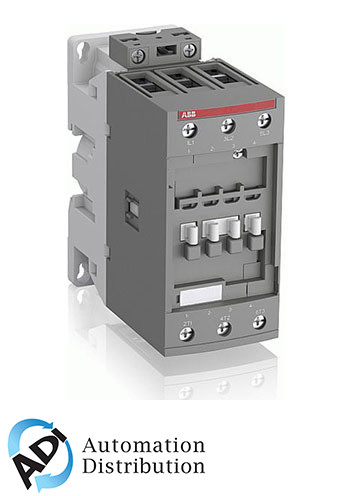

ABB AF65-30-00-12 Contactor, 3-Pole, 68A, 48-130V AC/DC Versatile Power Circuit Control Solution with Built-in Surge Protection and Global Voltage Compatibility
ABB
$456.15
The ABB AF65-30-00-12 contactor is a versatile and reliable solution for controlling power circuits up to 690 V AC and 220 V DC. Designed primarily for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features an innovative electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. With only four coils needed to cover this extensive voltage range, the AF65-30-00-12 simplifies inventory and enhances flexibility for global applications. Its built-in surge protection eliminates the need for additional suppressors, ensuring a compact and efficient design. The contactor's block type construction includes 3 main poles and offers the option for front and side-mounted auxiliary contact blocks, compliant with IEC standards. Suitable for both AC and DC operation, the AF65-30-00-12 can control motors up to 30 kW at 400 V AC or 50 hp at 480 V UL, and switch power circuits up to 105 A (AC-1) or 90 A UL general use. This robust contactor is ideal for applications requiring reliable performance in fluctuating voltage conditions, while its energy-efficient design reduces panel consumption. A wide range of accessories is available to further enhance its functionality and adaptability.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 48 ... 130 V
- Spec Sheet:
- View
