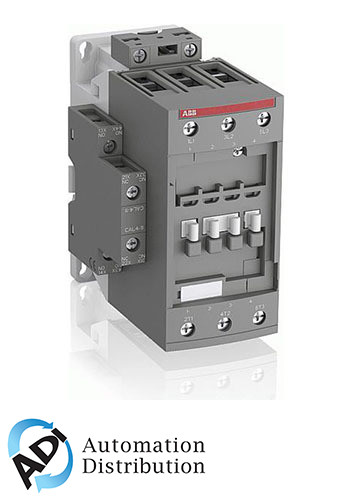

ABB AF65-30-11-11 Contactor: 3-Pole, 68A, 20-60VDC/24-60VAC with Built-in Surge Protection and Versatile Voltage Compatibility
ABB
$495.37
The ABB AF65-30-11-11 contactor is a versatile and robust solution for controlling power circuits up to 690 V AC and 220 V DC. Designed primarily for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features an innovative electronic coil interface that accommodates a wide range of control voltages, from 24 to 500 V AC/DC. This flexibility allows for seamless integration into various systems worldwide without the need for coil changes. The AF65-30-11-11 contactor is equipped with built-in surge protection, eliminating the need for additional surge suppressors and ensuring reliable performance even in unstable networks. Its block type design includes 3 main poles and side-mounted auxiliary contact blocks, with options for front-mounted add-ons, providing enhanced functionality and compliance with international standards. With the ability to control motors up to 30 kW / 400 V AC or 50 hp / 480 V UL, and switch power circuits up to 105 A (AC-1) or 90 A UL general use, this contactor is a powerful and efficient choice for a wide range of industrial applications. Additionally, a comprehensive range of accessories is available to further customize and extend its capabilities.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
