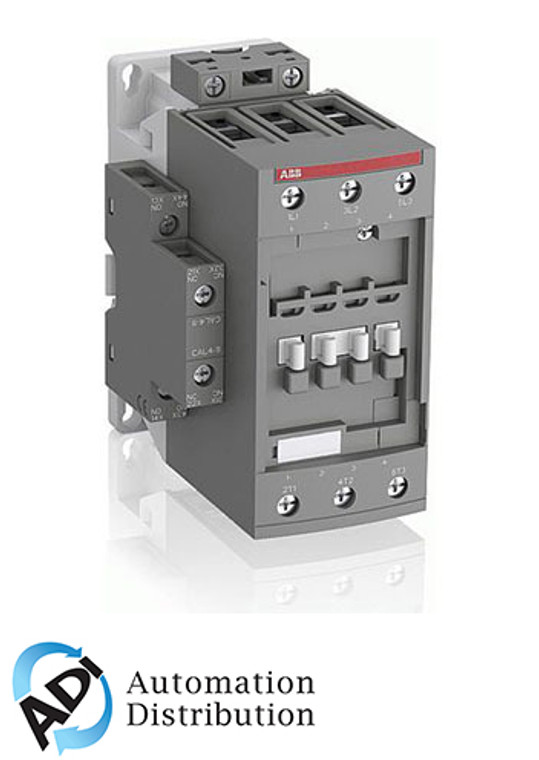

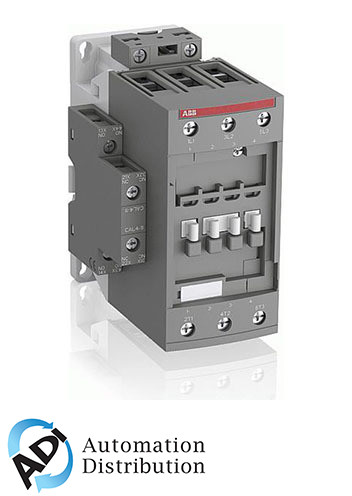

ABB AF65-30-11-14 Contactor, 3-Pole, 68A, 250-500V AC/DC Versatile Motor Control Solution with Built-in Surge Protection
ABB
$235.78
The ABB AF65-30-11-14 contactor is a versatile and reliable solution for controlling power circuits up to 690 V AC and 220 V DC. Designed primarily for managing 3-phase motors and non-inductive or slightly inductive loads, this contactor features an innovative electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. With only four coils covering this extensive voltage range, the AF65-30-11-14 eliminates the need for coil changes, making it suitable for global applications. Its built-in surge protection ensures durability and eliminates the requirement for additional surge suppressors. The contactor's block type design includes 3 main poles and a side-mounted auxiliary contact block with 1 N.O. and 1 N.C. contacts, compliant with IEC standards. It supports both AC and DC operation and offers a variety of accessories for customization. Ideal for controlling motors up to 30 kW at 400 V AC or 50 hp at 480 V UL, the AF65-30-11-14 provides efficient and stable performance even in networks with significant voltage fluctuations.
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 250 ... 500 V
- Terminal Type:
- Screw Terminals
- Spec Sheet:
- View
