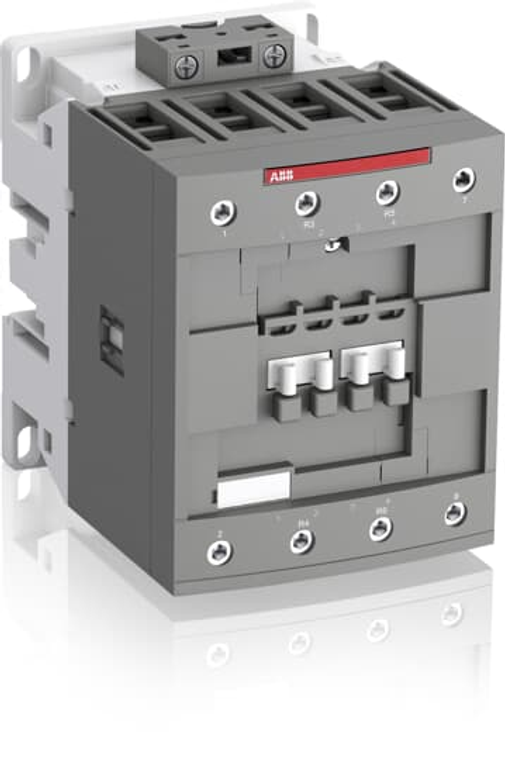

ABB AF80-22-00-13 Contactor, 4-Pole, 2NO/2NC, 105A, 600VAC - Versatile Power Circuit Control Solution with Global Voltage Compatibility and Built-In Surge Protection
ABB
$341.82
The ABB AF80-22-00-13 contactor is a versatile and reliable solution for controlling power circuits up to 690 V AC and 440 V DC. Designed for non-inductive or slightly inductive loads, such as resistance furnaces, this 4-pole contactor features 2 normally open (N.O.) and 2 normally closed (N.C.) main poles. It includes an innovative electronic coil interface that accepts a wide range of control voltages, from 24 to 500 V AC/DC, allowing for global compatibility without the need for coil changes. The AF80-22-00-13 is equipped with built-in surge protection, eliminating the need for additional suppressors and ensuring safe operation in unstable networks. With a block type design, it supports easy expansion with front and side-mounted auxiliary contact blocks and a variety of accessories. This contactor is capable of controlling motors up to 37 kW at 400 V AC and switching power circuits up to 125 A (AC-1) or 105 A UL general use, making it an ideal choice for a wide range of industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Spec Sheet:
- View
