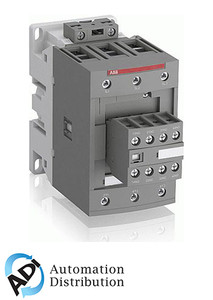

ABB AF96-30-00-13 Contactor, 3-Pole, 92A, 100-250V AC/DC with Built-in Surge Protection and Global Voltage Compatibility
ABB
$284.60
The ABB AF96-30-00-13 contactor is a versatile and robust solution for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an electronic coil interface that accommodates a wide range of control voltages, from 24 to 500 V AC/DC, allowing for global compatibility without the need for coil changes. With built-in surge protection, the AF96-30-00-13 eliminates the need for additional surge suppressors, ensuring reliable performance in fluctuating power conditions. Its block type design includes 3 main poles and the option to add auxiliary contact blocks, enhancing its functionality. The contactor is capable of controlling motors up to 45 kW at 400 V AC or 60 hp at 480 V UL, and can switch power circuits up to 130 A (AC-1) or 115 A UL general use. A wide range of accessories is available to further customize and extend its capabilities, making the AF96-30-00-13 a comprehensive solution for various industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Spec Sheet:
- View
