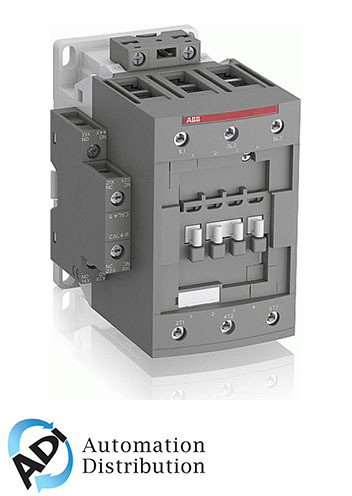

ABB AF96-30-11-13 Contactor - 3-Pole, 92A, 100-250V AC/DC with Built-in Surge Protection and Auxiliary Contacts
The ABB AF96-30-11-13 contactor is a versatile and robust solution for controlling power circuits up to 690 V AC and 220 V DC. Designed primarily for 3-phase motors and non-inductive or slightly inductive loads, this contactor features an innovative electronic coil interface that accommodates a wide range of control voltages from 24 to 500 V AC/DC. This flexibility allows for seamless integration into various global applications without the need for coil changes. The AF96-30-11-13 is equipped with built-in surge protection, eliminating the need for additional suppressors and ensuring reliable performance even in unstable networks. Its block type design includes 3 main poles and a side-mounted auxiliary contact block with 1 N.O. and 1 N.C. contacts, compliant with IEC standards for mechanically linked and mirror contacts. The contactor supports both AC and DC operation and can be expanded with a variety of accessories to suit specific needs. Ideal for controlling motors up to 45 kW at 400 V AC or 60 hp at 480 V UL, it also handles switching power circuits up to 130 A (AC-1) or 115 A UL general use. The AF96-30-11-13 is a reliable choice for efficient and adaptable power circuit management.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 100 ... 250 V
- Spec Sheet:
- View
