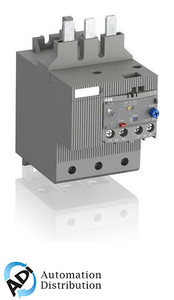

ABB EF146-150 Electronic Overload Relay with ATEX & IECEx Certification - Optimal Motor Protection, 54-150A Range, Trip Classes 10E/20E/30E

ABB
SKU:
EF146-150
|
UPC:
4013614442230
Availability:
Commonly Stocked at Factory
$514.83
Condition:
New
Current Stock:
The ABB EF146-150 eol,af116-146,class-102030,54-150a is a self-supplied electronic overload relay designed for optimal motor protection without the need for an external power supply. It ensures reliable and swift protection against motor overloads and phase failures, making it an ideal choice for standard motor applications. This electronic overload relay stands out with its extensive setting range, precise accuracy, and ability to operate in high-temperature environments. Users can select from trip classes 10E, 20E, or 30E, and benefit from features such as temperature compensation, trip contact (NC), signal contact (NO), and the option for automatic or manual reset. The relay also includes a trip-free mechanism, STOP and Test functions, and a trip indication for enhanced functionality. Designed to connect directly to contactors, the EF146, along with models EF65 and EF96, boasts ATEX and IECEx certifications, ensuring compliance with international safety standards.
Product Name:
Electronic Overload Relay
Voltage Rating:
Auxiliary Circuit 600 V AC / DC / Main Circuit 1000 V AC
Ambient Air Temperature:
Operation -25 ... +70 ‚°C / Operation Compensated -25 ... +70 ‚°C / Storage -50 ... +85 ‚°C
Trip Class:
class 10E / class 20E / class 30E
Spec Sheet:
View
