Description
Overview
Abb

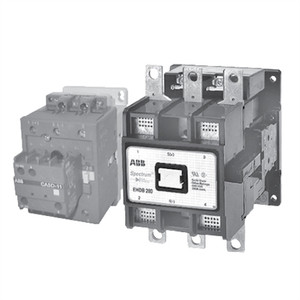

Dc Drive Contactors, Ehdb Series
Item# Ehdb220C-4L - Contactor, 3-P 2No/1Nc, 480Vac Coil
Ehdb Series Information
- 24~600 Vac/Vdc Coils
- Make 300 Vdc
- Break 160 Vdc
- Ul; Csa Approved
- Up To 960 Amps
- 2 And 3 Poles
- Dc Control Operation Available
Specifications
Item Number: &Nbsp;
Ehdb220C-4L
Upc: &Nbsp;
662019668802
Brand:
Abb
Item Category:
Contactors
Subcategory:
Dc Drive
Series:
Ehdb
Poles:
2No; 1Nc
Nominal Coil Voltage:
480 Vac
Coil Voltage:
415~480 Vac
Dc Thermal Amp Rating:
220 Amps
Auxiliary Contacts:
1No; 1Nc
Dc Make Current (N.C.):
450 Amps
Dc Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
285 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
No
Picture No.:
Abbg_Ctrl_Ehdb220-280
H X W X D:
7.79 In X 5.35 In X 6.65 In
&Nbsp;&Nbsp;Net Weight:
10 Lb 10 Oz
&Nbsp;&Nbsp;Gross Weight:
10 Lb 10 Oz
