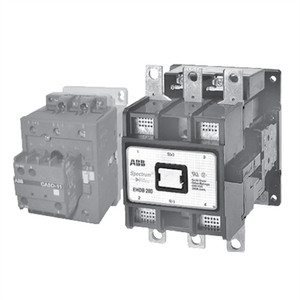

ABB EHDB280C-1L 110V 50Hz Contactor for Solid State D.C. Adjustable Speed Drive Systems - UL & CSA Approved, 960 Amps Capacity, 3-Pole Configuration
The ABB EHDB280C-1L is a robust and reliable drive contactor from the EHDB series, specifically engineered for solid state D.C. adjustable speed drive systems. This contactor is designed to handle up to 960 amps and is UL and CSA approved, ensuring high performance and safety standards. It features a 3-pole configuration with 2 normally open (NO) and 1 normally closed (NC) contacts, and operates with a 120 Vac control voltage. The contactor is capable of making 300 Vdc and breaking 160 Vdc, making it suitable for demanding applications. It includes auxiliary contacts with 1 NO and 1 NC configuration, and supports dynamic braking with a current of 363 amps and voltage of 160 volts. The EHDB280C-1L is compact, measuring 7.79 inches in height, 5.35 inches in width, and 6.65 inches in depth, with a net weight of 10 lbs 10 oz. It is designed for easy installation with box lug terminations and does not include terminal lugs. This contactor is an ideal choice for applications where the contactor is not required to make or break the load during normal operation.
