ABB

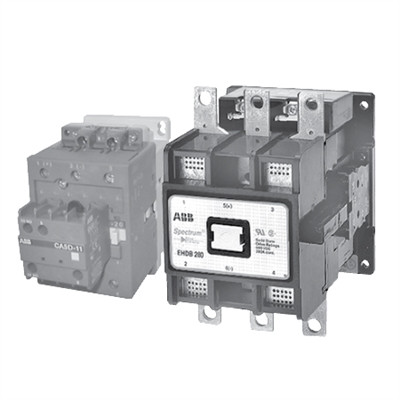

ABB EHDB280M2P-PL ab ehdb280m2ppl drv.mi.c,2p,280a,11

(No reviews yet) Write a Review
SKU:
EHDB280M2P-PL
MPN:
EHDB280M2P-PL
Condition:
New
  • ABB EHDB280M2P-PL ab ehdb280m2ppl drv.mi.c,2p,280a,11
  • ABB EHDB280M2P-PL ab ehdb280m2ppl drv.mi.c,2p,280a,11
$5,671.06

Description

Overview

ABB

DC Drive Contactors, EHDB Series

Item# EHDB280M2P-PL - CONTACTOR

EHDB Series Information
  • 24~600 VAC/VDC Coils
  • Make 300 VDC
  • Break 160 VDC
  • UL; CSA Approved
  • Up to 960 Amps
EHDB drive contactors are specifically designed for use with solid state D.C. adjustable speed drive systems. In drive applications, the contactor is not required to make or break the load during normal operation.
  • 2 and 3 Poles
  • DC Control Operation Available

Specifications

Item Number:
EHDB280M2P-PL
UPC:
8043254437610
Brand:
ABB
Item Category:
Contactors
Subcategory:
DC Drive
Series:
EHDB
Poles:
2NO
Nominal Coil Voltage:
120 VAC
Coil Voltage:
110 VAC
DC Thermal Amp Rating:
280 Amps
Auxiliary Contacts:
1NO; 1NC
DC Make Current (N.C.):
565 Amps
DC Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
363 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
Yes
Picture No.:
ABBG_CTRL_EHDB220M-280M-2P
H x W x D:
7.79 in x 5.35 in x 6.65 in
  Net Weight:
1 lb
  Gross Weight:
1 lb
