ABB

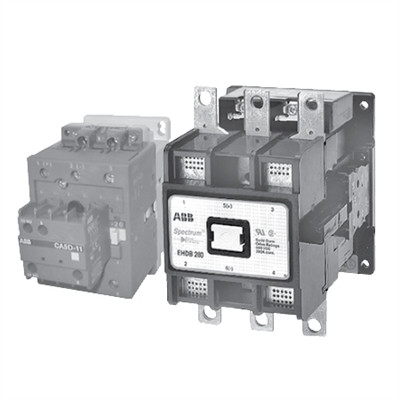

ABB EHDB360C-1L ehdb360-21-11 110v 50hz contactor

(No reviews yet) Write a Review
SKU:
EHDB360C-1L
MPN:
EHDB360C-1L
Condition:
New
  • ABB EHDB360C-1L ehdb360-21-11 110v 50hz contactor
  • ABB EHDB360C-1L ehdb360-21-11 110v 50hz contactor
$8,073.89

Description

Overview

Abb

Dc Drive Contactors, Ehdb Series

Item# Ehdb360C-1L - Drive Contactor, 3-P 2No/1Nc, 120Vac Coil, Includes 1No &Amp; 1Nc Auxiliary Contacts, Less Terminal Lugs

Ehdb Series Information
  • 24~600 Vac/Vdc Coils
  • Make 300 Vdc
  • Break 160 Vdc
  • Ul; Csa Approved
  • Up To 960 Amps
Ehdb Drive Contactors Are Specifically Designed For Use With Solid State D.C. Adjustable Speed Drive Systems. In Drive Applications, The Contactor Is Not Required To Make Or Break The Load During Normal Operation.
  • 2 And 3 Poles
  • Dc Control Operation Available

Specifications

Item Number: &Nbsp;
Ehdb360C-1L
Upc: &Nbsp;
6620194395710
Brand:
Abb
Item Category:
Contactors
Subcategory:
Dc Drive
Series:
Ehdb
Poles:
2No; 1Nc
Nominal Coil Voltage:
120 Vac
Coil Voltage:
120 Vac
Dc Thermal Amp Rating:
360 Amps
Auxiliary Contacts:
1No; 1Nc
Dc Make Current (N.C.):
728 Amps
Dc Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
472 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
No
Picture No.:
Abbg_Ctrl_Ehdb360
H X W X D:
8.14 In X 6.92 In X 6.88 In
&Nbsp;&Nbsp;Net Weight:
14 Lb 5 Oz
&Nbsp;&Nbsp;Gross Weight:
14 Lb 5 Oz
