Description
Overview
Abb

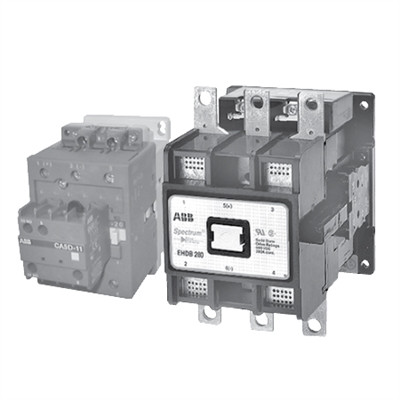

Dc Drive Contactors, Ehdb Series
Item# Ehdb360C-Pl - Contactor, 3-P 2No/1Nc, 110Vdc
Ehdb Series Information
- 24~600 Vac/Vdc Coils
- Make 300 Vdc
- Break 160 Vdc
- Ul; Csa Approved
- Up To 960 Amps
- 2 And 3 Poles
- Dc Control Operation Available
Specifications
Item Number: &Nbsp;
Ehdb360C-Pl
Upc: &Nbsp;
662019464664
Brand:
Abb
Item Category:
Contactors
Subcategory:
Dc Drive
Series:
Ehdb
Poles:
2No; 1Nc
Nominal Coil Voltage:
120 Vac
Coil Voltage:
110 Vac
Dc Thermal Amp Rating:
360 Amps
Auxiliary Contacts:
1No; 1Nc
Dc Make Current (N.C.):
728 Amps
Dc Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
472 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
No
Picture No.:
Abbg_Ctrl_Ehdb360
H X W X D:
8.14 In X 6.92 In X 6.88 In
&Nbsp;&Nbsp;Net Weight:
1 Lb
&Nbsp;&Nbsp;Gross Weight:
1 Lb
