Description
Overview
ABB
DC Drive Contactors, EHDB Series

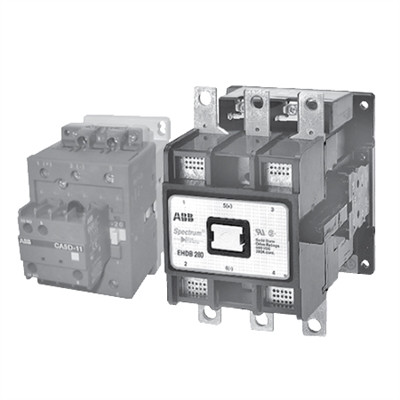

Item# EHDB520M2P-1L - CONTACTOR, 2-P NO, 120VAC
EHDB Series Information
- 24~600 VAC/VDC Coils
- Make 300 VDC
- Break 160 VDC
- UL; CSA Approved
- Up to 960 Amps
- 2 and 3 Poles
- DC Control Operation Available
Specifications
Item Number:
EHDB520M2P-1L
UPC:
662019489001
Brand:
ABB
Item Category:
Contactors
Subcategory:
DC Drive
Series:
EHDB
Poles:
2NO
Nominal Coil Voltage:
120 VAC
Coil Voltage:
120 VAC
DC Thermal Amp Rating:
520 Amps
Auxiliary Contacts:
1NO; 1NC
DC Make Current (N.C.):
1,040 Amps
DC Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
680 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
Yes
Picture No.:
ABBG_CTRL_EHDB520M-650M-2P
H x W x D:
10.71 in x 7.8 in x 8.9 in
Net Weight:
1 lb
Gross Weight:
1 lb
