ABB

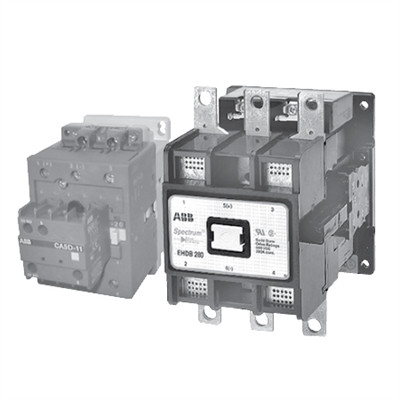

ABB EHDB800C-YL ab ehdb800cyl drv.ctr,3p,800a,24vdc

(No reviews yet) Write a Review
SKU:
EHDB800C-YL
MPN:
EHDB800C-YL
Condition:
New
  • ABB EHDB800C-YL ab ehdb800cyl drv.ctr,3p,800a,24vdc
  • ABB EHDB800C-YL ab ehdb800cyl drv.ctr,3p,800a,24vdc
$14,858.43

Description

Overview

ABB

DC Drive Contactors, EHDB Series

Item# EHDB800C-YL - 3P DRIVE CONTACTOR,800A

EHDB Series Information
  • 24~600 VAC/VDC Coils
  • Make 300 VDC
  • Break 160 VDC
  • UL; CSA Approved
  • Up to 960 Amps
EHDB drive contactors are specifically designed for use with solid state D.C. adjustable speed drive systems. In drive applications, the contactor is not required to make or break the load during normal operation.
  • 2 and 3 Poles
  • DC Control Operation Available

Specifications

Item Number:
EHDB800C-YL
UPC:
804325388436
Brand:
ABB
Item Category:
Contactors
Subcategory:
DC Drive
Series:
EHDB
Poles:
2NO; 1NC
Nominal Coil Voltage:
24 VDC
Coil Voltage:
24 VDC
DC Thermal Amp Rating:
800 Amps
Auxiliary Contacts:
1NO; 1NC
DC Make Current (N.C.):
1,600 Amps
DC Make Voltage (N.C.):
300 Volts
Dynamic Braking Current:
1,050 Amps
Dynamic Braking Voltage:
160 Volts
Termination:
Box Lug
Mechanically Interlocked:
No
Picture No.:
ABBG_CTRL_EHDB800-960
H x W x D:
11.57 in x 9.61 in x 8.9 in
  Net Weight:
1 lb
  Gross Weight:
1 lb
