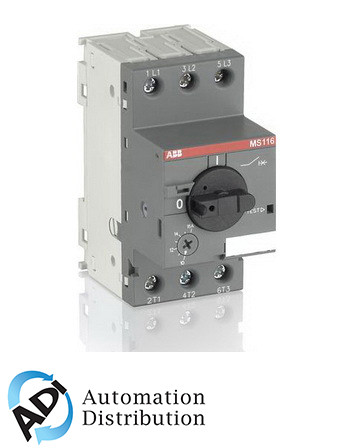

ABB MS116-0.16 Manual Motor Protector - 3-Phase, 0.1-0.16A Range, 50 kA Short-Circuit Capacity, UL/CSA/CE Approved
ABB
$139.82
The ABB MS116-0.16 is a versatile manual motor protector designed for efficient motor management and protection. With a compact 45 mm width, this device is engineered to handle a rated operational current of 0.16 A, making it ideal for both three-phase and single-phase applications. It provides reliable protection against short-circuits, overloads, and phase failures without the need for additional fuses. The MS116-0.16 features a robust short-circuit breaking capacity of 50 kA at 400 VAC and operates with a trip class of 10A. Its design includes a built-in disconnect function, temperature compensation, and a trip-free mechanism, all controlled via a rotary handle that clearly indicates switch positions. For enhanced functionality, a wide range of accessories is available, including auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and locking devices to prevent unauthorized adjustments. This manual motor starter is UL, CSA, and CE approved, ensuring compliance with international safety standards.
