ABB

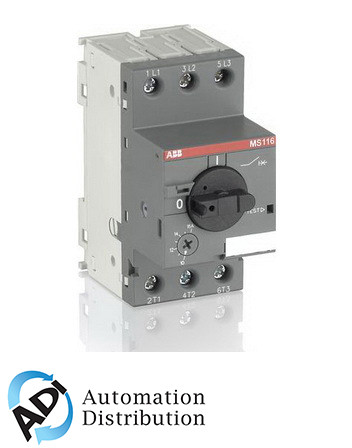

ABB MS116-6.3 3p mmp 4.0-6.3a range

(No reviews yet) Write a Review
SKU:
MS116-6.3
MPN:
MS116-6.3
Condition:
New
  • ABB MS116-6.3 3p mmp 4.0-6.3a range
  • ABB MS116-6.3 3p mmp 4.0-6.3a range
$194.11

Description

Overview

Abb

Manual Motor Protectors, Ms Series

Item# Ms116-6.3 - Manual Motor Protector, 4.0-6.3A, Rotary Handle, Class 10, 1Sam250000R1009

Ms Series Information
  • Rated Up To 100 Amps
  • Up To 40 Hp @ 240V 3Ph
  • Up To 75 Hp @ 480V 3Ph
  • Ul, Csa, Ce Approvals
  • Din Rail Mount
The Abb Ms Series Manual Motor Protectors Provide Highly Efficient Motor Protection Up To 100 Amps. The Short Circuit Breaking Capacity Of These Devices Can Reach Up To 100 Ka Depending On The Mmp Type Used, Without The Need For Any Special Upstream Protection. These Manual Motor Protectors Are Designed To Be Easily Coordinated With Various Other Components From Abb.

  • Ip20 Protection
  • Wide Range Of Accessories Available

Specifications

Item Number: &Nbsp;
Ms116-6.3
Upc: &Nbsp;
662019857817
Brand:
Abb
Item Category:
Manual Motor Protectors
Subcategory:
3 Phase Manual Motor Protectors
Series:
Ms
Operating Current:
16 Amps
Fla Adj. Range:
4~6.3
Poles:
3
Hp 120V 1Ph:
0.25 Horsepower
Hp 230/240V 1Ph:
0.5 Horsepower
Hp 230/240V 3Ph:
1.5 Horsepower
Hp 460/480V 3Ph:
3 Horsepower
Hp 575/600V 3Ph:
5 Horsepower
Trip Class:
10&Nbsp;&Nbsp;
Environmental Rating:
Ip20
Approvals:
Ul;Csa;Ce
H X W X D:
3.54 In X 1.77 In X 3.35 In
&Nbsp;&Nbsp;Net Weight:
9.9337 Oz
&Nbsp;&Nbsp;Gross Weight:
9.9337 Oz
