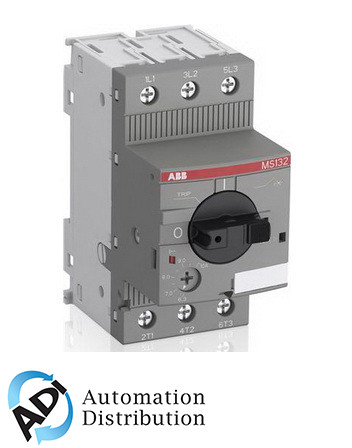

ABB MS132-0.25 Manual Motor Protector, 0.16-0.25A Adjustable Range, 3-Pole, UL/cUL/CE Approved
ABB
$156.08
(No reviews yet)
Write a Review
Write a Review
ABB
ABB MS132-0.25 Manual Motor Protector, 0.16-0.25A Adjustable Range, 3-Pole, UL/cUL/CE Approved
The ABB MS132-0.25 Manual Motor Protector is a versatile and reliable device designed for efficient motor management. With an adjustable current range of 0.16-0.25A, this compact 45 mm width protector ensures optimal performance and safety for your motors. It features overload protection with Trip Class 10, phase loss sensitivity, and a disconnect function, making it ideal for both three- and single-phase applications. The device is equipped with temperature compensation, allowing it to operate effectively in temperatures ranging from -25°C to +60°C (-13°F to +140°F). The MS132-0.25 offers a trip-free mechanism and a lockable rotary handle with clear switch position indication (On/Off/Trip) for enhanced security and ease of use. It boasts a rated service short-circuit breaking capacity of 100 kA at 400 VAC, ensuring quick response to short-circuit conditions without the need for fuses. This manual motor starter is UL, cUL, and CE approved, and its compact design saves space while providing robust protection. Accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and terminal spacers are available to enhance its functionality. With a net weight of 8.6183 oz, the ABB MS132-0.25 is a reliable choice for safeguarding your motors.
