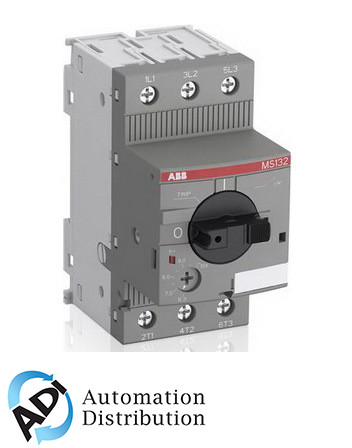

ABB MS132-1.0 Manual Motor Protector: 3-Phase MMP with 0.63-1.0A Adjustable Range, Short-Circuit & Overload Protection
ABB
$178.85
The ABB MS132-1.0 Manual Motor Protector is a versatile and reliable device designed for efficient motor management. This compact 45 mm width unit is engineered to manually switch motors on and off while providing robust protection against short-circuits, overloads, and phase failures without the need for fuses. With an adjustable current setting range of 0.63-1.0A, it ensures precise overload protection tailored to your needs. The MS132-1.0 features a trip class 10 overload protection, phase loss sensitivity, and a disconnect function, making it ideal for both three-phase and single-phase applications. Its temperature compensation capability ranges from -25 to +60°C (-13 to +140°F), ensuring reliable performance in various environments. The device includes a trip-free mechanism, status indication, and a lockable handle for enhanced security. With a rated service short-circuit breaking capacity of 100 kA at 400 VAC, this manual motor starter is a dependable choice for safeguarding your motors. Additionally, it offers clear switch position indication (On/Off/Trip) and is compatible with a range of accessories, including auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and terminal spacers.
