Description
Overview
Abb
Manual Motor Protectors, Ms132 Series

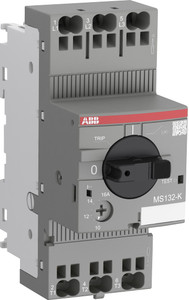

Item# Ms132-16 - Manual Motor Protector, 10-16A, 1Sam350000R1011
Ms132 Series Information
- Overload Protection - Trip Class 10
- Phase Loss Sensitivity
- Disconnect Function
- Temperature Compensation From -25...+60 C (-13...+140 F)
- Adjustable Current Setting For Overload Protection
Fuse Less Protection With A Manual Motor Starter Saves Costs, Space And Ensures A Quick Reaction Under Short-Circuit Condition, By Switching Off The Motor Within Milliseconds. Fuse Less Starter Combinations Are Setup Together With Contactors.
- Suitable For Three- And Single-Phase Application
- Trip-Free Mechanism
- Status Indication
- Clear Switch Position Indication On/Off/Trip
- Lockable Handle
Specifications
Item Number: &Nbsp;
Ms132-16
Upc: &Nbsp;
8043255305910
Brand:
Abb
Item Category:
Manual Motor Protectors
Subcategory:
3 Phase Manual Motor Protectors
Series:
Ms132
Operating Current:
16 Amps
Fla Adj. Range:
10~16
Poles:
3
Hp 230/240V 1Ph:
2 Horsepower
Hp 200/208V 3Ph:
2 Horsepower
Hp 230/240V 3Ph:
5 Horsepower
Hp 460/480V 3Ph:
10 Horsepower
Hp 575/600V 3Ph:
10 Horsepower
Trip Class:
Approvals:
Ul;Cul;Ce
H X W X D:
3.82 In X 1.77 In X 2.84 In
&Nbsp;&Nbsp;Net Weight:
11.36 Oz
&Nbsp;&Nbsp;Gross Weight:
11.6 Oz
