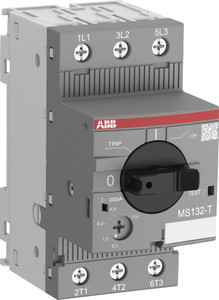

ABB MS132-16T Compact Manual Motor Protector for Transformer Protection, 10-16A, 100 kA Breaking Capacity at 400 VAC
The ABB MS132-16T is a compact manual motor protector designed specifically for transformer protection. With a width of just 45 mm, this device is engineered to safeguard control transformers on the primary side, offering a rated operational current of 16 A. It provides fuse-less protection against both overload and short-circuit conditions, with a fixed short-circuit current setting at 20 times the rated operational current to effectively manage the high inrush currents typical of transformers.
This circuit breaker features a built-in disconnection function, allowing for manual connection and disconnection of the transformer from the mains. It boasts a rated service short-circuit breaking capacity of 100 kA at 400 VAC and operates with a trip class 10. Additional features include temperature compensation, a trip-free mechanism, and a rotary handle that clearly indicates switch positions and short circuit trip status. For enhanced security, the handle is lockable to prevent unauthorized adjustments.
The ABB MS132-16T also supports a range of accessories, including auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks, and terminal spacers, making it a versatile and reliable choice for transformer protection.
