Description
Overview
Abb
Control Relays, Nf Series

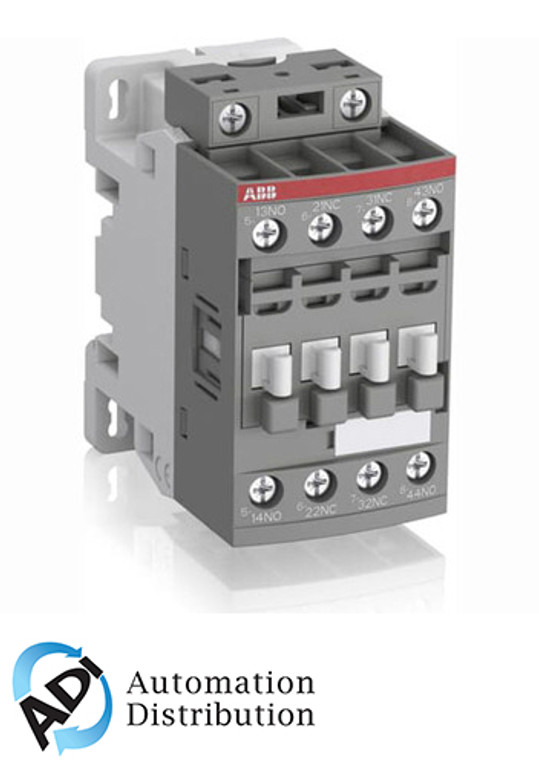

Item# Nf31E-13 - Control Relay,4-P 3No/1Nc, 100-250Ac Coil
Nf Series Information
- Nf Contactor Relays Are Used For Switching Auxiliary And Control Circuits.
- Nf Contactor Relays Include An Electronic Coil Interface Accepting A Wide Control Voltage Uc Min. ... Uc Max.
- Only Four Coils Cover Control Voltages Between 24...500 V 50/60 Hz Or 20...500 V Dc.
- Nf Contactor Relays Can Manage Large Control Voltage Variations.
- One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change.
- Nf Contactor Relays Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors.
- Control Circuit: Ac Or Dc Operated
- Accessories: A Wide Range Of Accessories Is Available.
Specifications
Item Number: &Nbsp;
Nf31E-13
Upc: &Nbsp;
804325556057
Brand:
Abb
Item Category:
Control Relays
Series:
Nf
No. Of Poles:
4
Contact Configuration:
3No; 1Nc
Coil Voltage:
100~250 Vac
Thermal Current (A):
16 Amps
Termination:
Screw
Mounting:
Screw;Din Rail
Low Power Consumption:
No
Approvals:
Ce;Ul;Ccc;Gost
H X W X D:
3.39 In X 2.95 In X 3.03 In
&Nbsp;&Nbsp;Net Weight:
9.52 Oz
&Nbsp;&Nbsp;Gross Weight:
9.52 Oz
