ABB
Control Relays, NF Series

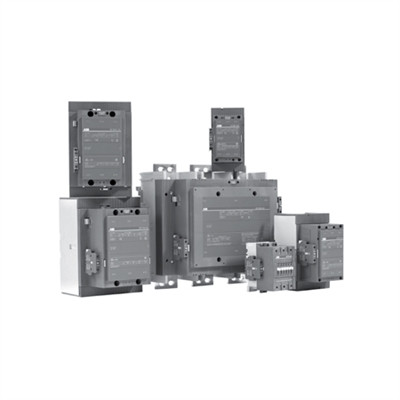

Item# NF44E-11 - Relay,4NO,4NC,24-60V50/60HZ,20-60VDC
NF Series Information
- NF contactor relays are used for switching auxiliary and control circuits.
- NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max.
- Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC.
- NF contactor relays can manage large control voltage variations.
- One coil can be used for different control voltages used worldwide without any coil change.
- NF contactor relays have built-in surge protection and do not require additional surge suppressors.
- Control Circuit: AC or DC operated
- Accessories: a wide range of Accessories is available.
Specifications
Item Number:
NF44E-11
UPC:
804325556194
Brand:
ABB
Item Category:
Control Relays
Series:
NF
No. of Poles:
8
Contact Configuration:
4NO; 4NC
Coil Voltage:
24~60 VAC;20~60 VDC
Thermal Current (A):
16 Amps
Termination:
Screw
Mounting:
Screw;DIN Rail
Low Power Consumption:
No
Approvals:
CE;UL;CCC;GOST
H x W x D:
3.39 in x 1.77 in x 4.35 in
Net Weight:
11.29 oz
Gross Weight:
11.29 oz
