Description
Overview
Abb

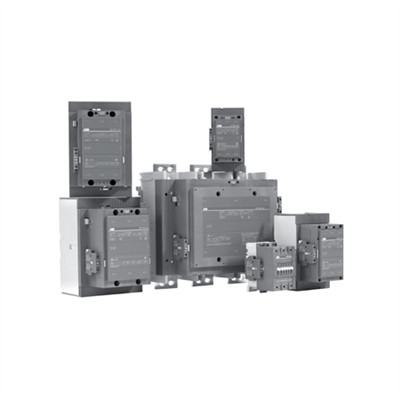

Control Relays, Nfz Series
Item# Nfz44E-21 - Relay,4No,4Nc,24-60V50/60Hz, 20-60Vdc,L
Nfz Series Information
- Nfz Contactor Relays Are Used For Switching Auxiliary And Control Circuits.
- Nfz Contactor Relays Include An Electronic Coil Interface Accepting A Wide Control Voltage Uc Min. ... Uc Max.
- Only Four Coils Cover Control Voltages Between 24...250 V 50/60 Hz Or 12...250 V Dc. Nf Contactor Relays Can Manage Large Control Voltage Variations.
- One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change.
- Nfz Contactor Relays Allow Direct Control By Plc-Output = 24 V Dc 500 Ma And Obtain A Reduced Holding Coil Consumption.
- Nfz Contactor Relays Withstand Short Voltage Dips And Voltage Sags (Semi F47-0706 Compliance) Between 24...250 V 50/60 Hz Nfz Contactor Relays Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
- Control Circuit: Ac Or Dc Operated
Specifications
Item Number: &Nbsp;
Nfz44E-21
Upc: &Nbsp;
804325556248
Brand:
Abb
Item Category:
Control Relays
Series:
Nfz
No. Of Poles:
8
Contact Configuration:
4No; 4Nc
Coil Voltage:
24~60 Vac;20~60 Vdc
Thermal Current (A):
16 Amps
Termination:
Screw
Mounting:
Screw;Din Rail
Low Power Consumption:
Yes
Approvals:
Ce;Ul;Ccc;Gost
H X W X D:
3.39 In X 1.77 In X 4.35 In
&Nbsp;&Nbsp;Net Weight:
12.7 Oz
&Nbsp;&Nbsp;Gross Weight:
12.7 Oz
