ABB
Control Relays, NL Series

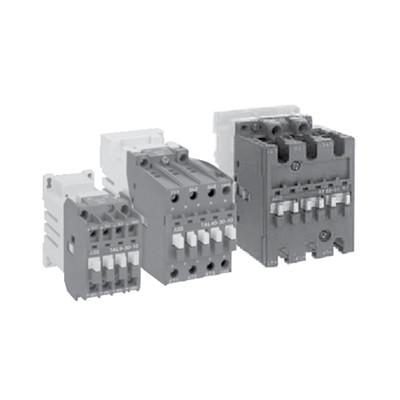

Item# NL31E-86 - Control Relay, 4-P 3NO/1NC, 110VDC Coil
NL Series Information
- Magnetic Circuit Variants: NL Types: D.C. Operated with Solid Magnetic Circuits
- 2 Versions: 4 Pole or 8 Pole
- Bifurcated Auxiliary Contacts
- Alone or Mounted with a 4 Pole CA5 Auxiliary Contact Block, these Devices Offer "Positive Safety" between their Auxiliary Contacts
There are many applications where safety is very critical and it is important to use electrical equipment which ensures that dangerous machine movement cannot occur when a fault is detected with the moving contacts during the cycle which the fault is indicated.
The ABB Type N & NL 4 and 8 pole relays are designed with "Positive Guided" contacts and fulfill the regulations or standards shown.
The relays can provide positive safety for the N.O. and N.C. contacts which assure that the N.O. contacts will not close before any N.C. contact opens. Therefore, if one of the contacts weld due to abnormal conditions in the control circuit, the other contacts will also remain in the same position as when the welding occurred. This means that the open contacts must maintain an air distance 0.5mm when the coil is energized at 110% Vc or when it is de-energized.
Specifications
Item Number:
NL31E-86
UPC:
662019111056
Brand:
ABB
Item Category:
Control Relays
Series:
NL
No. of Poles:
4
Contact Configuration:
3NO; 1NC
Coil Voltage:
110 VDC
Thermal Current (A):
16 Amps
Termination:
Screw
Mounting:
Screw;DIN Rail
Approvals:
UL
H x W x D:
3.8 in x 3.05 in x 1.75 in
Net Weight:
1 lb 1 oz
Gross Weight:
1 lb 2 oz
