Description
Overview
Abb
Mechanically Interlocked Miniature, Bc Series

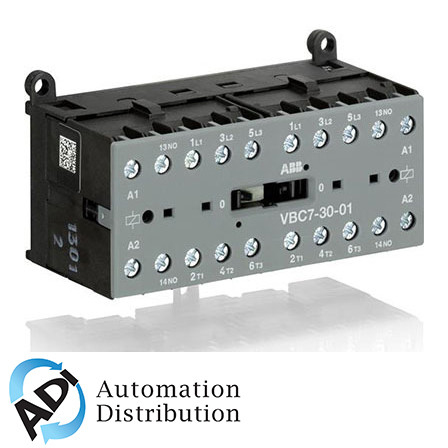

Item# Vbc7-30-01-07
Mini Contactor, 3-P N/O, 12Vdc Coil, Mechanically Interlocked, 1Nc Aux Contact, Screw Terminals
Specifications
Item Number: &Nbsp;
Vbc7-30-01-07
Upc: &Nbsp;
804325397193
Brand:
Abb
Item Category:
Contactors
Subcategory:
Mechanically Interlocked Miniature
Series:
Bc
Coil Voltage:
12 Vdc
Poles:
3No
Ul Motor Switching (Ac3):
9.6 Amps
Termination:
Screw
Auxiliary Contacts:
1Nc
General Purpose (Ac1):
16 Amps
Max Hp 575/600V 3Ph:
5 Horsepower
Max Hp 460/480V 3Ph:
5 Horsepower
Max Hp 230/240V 3Ph:
3 Horsepower
Max Hp 200/208V 3Ph:
2 Horsepower
Max Hp 230/240V 1Ph:
2 Horsepower
Max Hp 120V 1Ph:
1 Horsepower
Coil Type:
Magnetic
Picture No.:
Abbg_Ctrl_Vb6-Vb7
H X W X D:
2.26 In X 3.8 In X 1.83 In
&Nbsp;&Nbsp;Net Weight:
1 Lb
&Nbsp;&Nbsp;Gross Weight:
1 Lb
