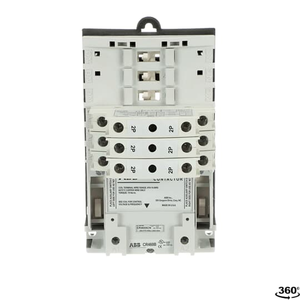

ABB CR463L11AJA Lighting Contactor-Open, 30A Capacity, 2-12 Poles, Versatile Circuit Management Solution
ABB
$708.34
The ABB CR463L11AJA Lighting Contactor-Open is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2-12 poles. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. With 74 different circuit combinations possible, it offers flexibility for various applications. The contactor is equipped with robust pole terminals that can accommodate up to two #8 AWG wires, ensuring secure connections. Its manual operator and fast, three-point mounting system make installation straightforward. The enclosed contacts are designed to resist contaminants, enhancing reliability. The contactor includes combination slotted/#2 Phillips screws for convenience. Power poles can be easily changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for 30A contacts, 15A motor, and A600 pilot duty, it is suitable for a wide range of tasks. The easy-to-read rating label and auxiliary contacts, rated A600, are ideal for low-level circuits down to 12V, 5mA. The plug-in auxiliary contacts are NO when installed on the left side and NC on the right. Safety is prioritized with finger and back-of-hand safe power terminals. The quick-view coil voltage and easy-change coil ensure efficient operation, while low magnetic noise contributes to quiet performance.
- Coil Voltage:
- 115-120V (50 Hz) /110V (60 Hz)
- Spec Sheet:
- View
