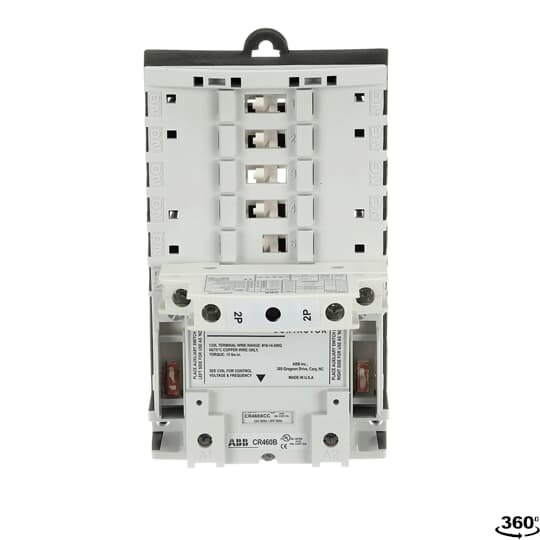

ABB CR463L20ACA Lighting Contactor-Open, 30A Capacity, 2-12 Poles, Electrically Held with Contact Position Indication and Easy Installation
ABB
$686.86
The ABB CR463L20ACA Lighting Contactor-Open is a versatile and reliable solution for managing lighting circuits. Designed with CR463 Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2 to 12 poles. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. With 74 different circuit combinations possible, it offers flexibility for various applications. The contactor is equipped with robust pole terminals that can accommodate up to two #8 AWG wires, ensuring secure connections. Its manual operator and fast, three-point mounting system make installation straightforward. The enclosed contacts are designed to resist contaminants, enhancing reliability. The contactor also includes combination slotted/#2 Phillips screws for convenience. Power poles can be easily converted from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for 30A contacts, 15A motor, and A600 pilot duty, this contactor is suitable for a wide range of tasks. Auxiliary contacts, rated A600, are ideal for low-level circuits down to 12V, 5mA, and can be configured as NO or NC depending on their position. The design ensures safety with finger and back-of-hand safe power terminals. Additionally, the contactor features a quick-view coil voltage and an easy-change coil, with low magnetic noise for quiet operation.
- Coil Voltage:
- 24V (50 Hz) /20V (60 Hz)
- Spec Sheet:
- View
