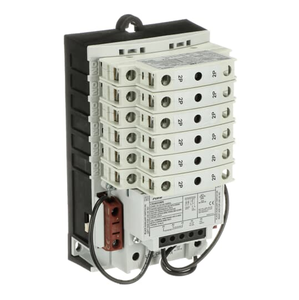

ABB CR463L20ANA10A0 Enclosed Lighting Contactor - 30A, 2-12 Pole Configurations, Electrically Held with Manual Operator and Quick-View Coil Voltage

The ABB CR463L20ANA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with electrically held contactors, this unit supports 30A (2-12 pole) configurations, offering up to 74 different circuit combinations. Its robust design includes a contact position indicator, allowing for easy identification of closed contacts when the button protrudes. The contactor features convenient side access for field power wiring and a standard base compatible with all pole configurations. The power poles, available in single or double configurations, can be easily changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. The contactor is equipped with robust pole terminals that accept up to two #8 AWG wires, ensuring secure connections. It also includes a manual operator and a fast, sure three-point mounting system for easy installation. Enclosed contacts resist contaminants, enhancing reliability, while combination slotted/#2 Phillips screws facilitate straightforward assembly. The power poles are rated for a range of tasks, including 30A rated contacts, 15A motor rated, and A600 pilot duty rated. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. Plug-in auxiliary contacts are designed to be normally open (NO) when installed on the left side of the base and normally closed (NC) on the right. The contactor ensures safety with finger and back-of-hand safe power terminals. It also features a quick-view coil voltage and an easy-change coil, with low magnetic noise for quiet operation. Ideal for lighting applications, this contactor operates on a 277V 60Hz coil, making it a reliable choice for various lighting control needs.
