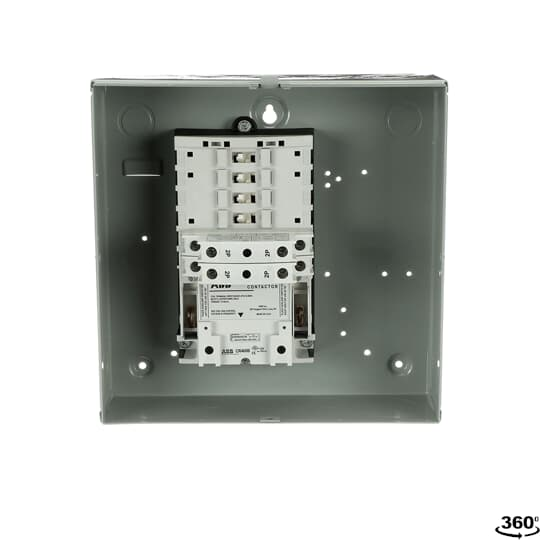

ABB CR463L40ANA10A0 Enclosed Lighting Contactor - Versatile 30A Solution with 2-12 Poles and Easy Configuration

The ABB CR463L40ANA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with electrically held contactors, this unit supports 30A across 2-12 poles, offering a wide range of circuit combinations with its standard assembled forms. The contact position indication feature allows for easy monitoring, as the button protrudes when the contact is closed. With power poles available in single or double configurations, users can create up to 74 different circuit combinations. The contactor is equipped with convenient side access for field power wiring and a contact configuration indicator for ease of use. Built with a robust standard base, the contactor accommodates all pole configurations and features durable pole terminals that accept up to two #8 AWG wires. The manual operator and fast, sure three-point mounting ensure straightforward installation. Enclosed contacts provide resistance against contaminants, enhancing reliability. The combination slotted/#2 Phillips screws facilitate easy assembly, while the power poles can be effortlessly changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating 180°. Rated for a variety of tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. Plug-in auxiliary contacts are designed to be NO when installed on the left side of the base and NC on the right, ensuring flexibility in configuration. The power terminals are finger and back-of-hand safe, and the quick-view coil voltage and easy-change coil features contribute to user-friendly operation. Additionally, the low magnetic noise design ensures quiet operation, making the ABB CR463L40ANA10A0 an ideal choice for efficient and dependable lighting control.
