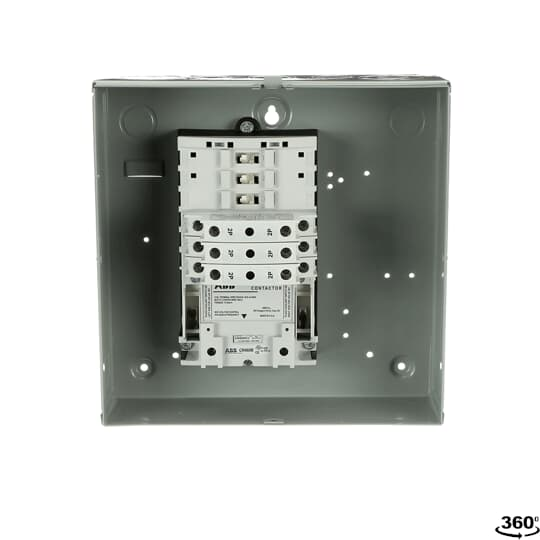

ABB CR463L60AJA10A0 Enclosed Lighting Contactor - 30A, 2-12 Poles, Versatile Circuit Management Solution

The ABB CR463L60AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2-12 poles. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. With 74 different circuit combinations possible, it offers flexibility for various applications. The device includes convenient side access for field power wiring and a contact configuration indicator for easy monitoring. Its robust pole terminals can accommodate up to two #8 AWG wires, ensuring secure connections. The manual operator and fast, sure three-point mounting system enhance ease of use. Enclosed contacts provide resistance to contaminants, increasing reliability. The contactor is equipped with combination slotted/#2 Phillips screws for versatile installation. Power poles can be easily changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for a range of tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. Plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right. The design ensures finger and back-of-hand safe power terminals, quick-view coil voltage, and easy-change coil, all contributing to low magnetic noise and quiet operation.
