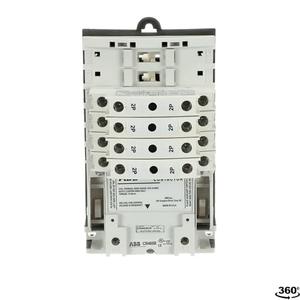

ABB CR463L80AJA Lighting Contactor-Open, 30A Capacity, 2-12 Poles, Electrically Held with Contact Position Indication and Easy Configuration Options

The ABB CR463L80AJA Lighting Contactor-Open is a versatile and reliable solution for managing lighting circuits. Designed with CR463 Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2-12 poles. The contactor features a contact position indication system, where a protruding button signifies a closed contact. It offers flexibility with single or double power poles, allowing for 74 different circuit combinations. The design includes convenient side access for field power wiring and a contact configuration indicator for easy monitoring. Its robust pole terminals can accommodate up to two #8 AWG wires, and the manual operator ensures straightforward control. The contactor is built for durability with enclosed contacts that resist contaminants, enhancing reliability. It features combination slotted/#2 Phillips screws for secure installation and a standard base for all pole configurations. The power poles can be easily changed from normally open (NO) to normally closed (NC) by unlatching and rotating them 180°. Rated for various tasks, the contactor supports 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. The plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right. Safety is prioritized with finger and back-of-hand safe power terminals. The quick-view coil voltage and easy-change coil design ensure efficient maintenance, while low magnetic noise guarantees quiet operation. This contactor is ideal for lighting applications, operating at 120V 60Hz and 110V 50Hz coil voltages.
