ABB CR463L80AJA10A0 Lighting Contactor-Enclosed: Versatile 30A Circuit Management with Enhanced Safety and Easy Installation

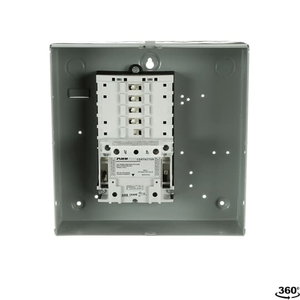

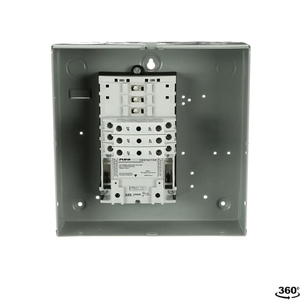

The ABB CR463L80AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, this unit supports 30A across 2-12 poles, offering a wide range of circuit combinations with its single or double pole power options. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. Its robust design includes convenient side access for field power wiring and a standard base that accommodates all pole configurations. The contactor's durable pole terminals can accept up to two #8 AWG wires, ensuring secure connections. This model is equipped with a manual operator and a fast, sure three-point mounting system, while the enclosed contacts provide resistance against contaminants for enhanced reliability. The combination slotted/#2 Phillips screws facilitate easy installation and maintenance. The power poles can be effortlessly changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for a variety of tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 Pilot duty rated applications. The contactor includes an easy-to-read rating label and auxiliary contacts rated A600, suitable for low-level circuits down to 12V, 5mA. These plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right. Safety is prioritized with finger and back-of-hand safe power terminals. The quick-view coil voltage and easy-change coil design ensure efficient operation, while low magnetic noise contributes to quiet performance. Ideal for lighting applications, this contactor operates on 120V 60Hz or 110V 50Hz coils, making it a reliable choice for various lighting control needs.
