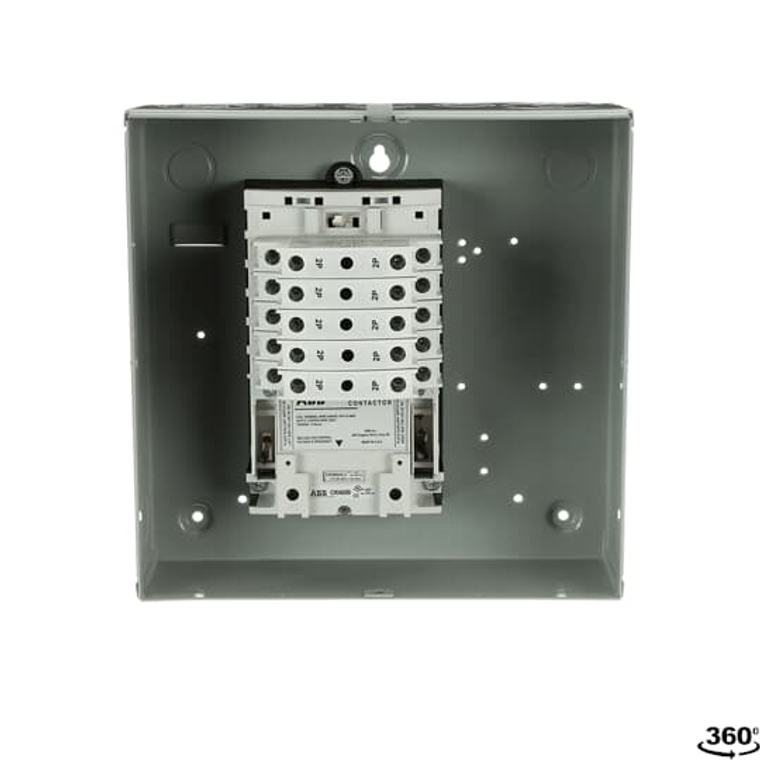

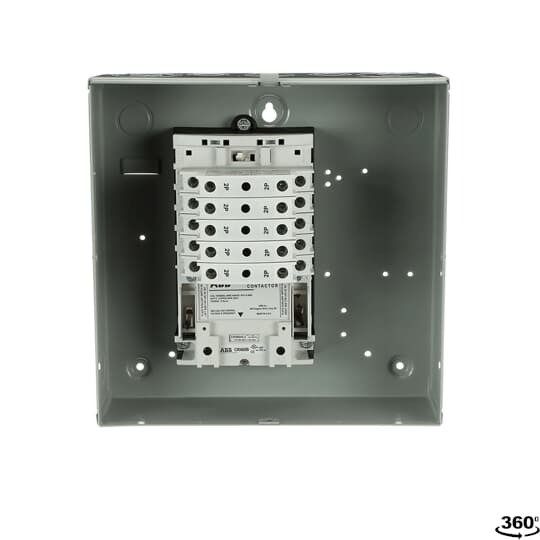

ABB CR463LB0AJA10A0 Lighting Contactor-Enclosed, 30A Capacity, 2-12 Poles, Electrically Held with Contact Position Indication and Easy Installation

The ABB CR463LB0AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2-12 poles. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. With 74 different circuit combinations possible, it offers flexibility for various applications. The contactor's robust design includes convenient side access for field power wiring and a standard base for all pole configurations. Its durable pole terminals can accommodate up to two #8 AWG wires, ensuring secure connections. The manual operator and fast, three-point mounting system make installation straightforward. Enclosed contacts provide resistance to contaminants, enhancing reliability. The contactor is equipped with combination slotted/#2 Phillips screws for ease of use. Power poles can be easily converted from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for a range of tasks, the contactor supports 30A rated contacts, 15A motor rated, and A600 Pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. Plug-in auxiliary contacts are NO when installed on the left side of the base and NC on the right. Safety is prioritized with finger and back-of-hand safe power terminals. The quick-view coil voltage and easy-change coil design ensure efficient operation, while low magnetic noise results in quiet performance.
