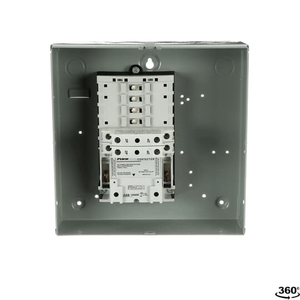

ABB CR463LD0AJA10A0 Enclosed Lighting Contactor - Versatile 30A Capacity with 2-12 Pole Configurations and Quiet Operation

The ABB CR463LD0AJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, it supports a range of configurations with 30A capacity across 2 to 12 poles. The contactor features a contact position indication system, allowing users to easily determine when the contact is closed. With 74 different circuit combinations possible, it offers flexibility for various applications. The device includes convenient side access for field power wiring and a contact configuration indicator for easy monitoring. Its robust pole terminals can accommodate up to two #8 AWG wires, ensuring secure connections. The manual operator and fast, three-point mounting system make installation straightforward. Enclosed contacts provide resistance to contaminants, enhancing reliability. The contactor is equipped with combination slotted/#2 Phillips screws for ease of use. Power poles can be effortlessly changed from normally open (NO) to normally closed (NC) by simply unlatching and rotating them 180°. Rated for 30A contacts, 15A motor, and A600 pilot duty, it is suitable for a wide range of tasks. The easy-to-read rating label and auxiliary contacts, rated A600, are ideal for low-level circuits down to 12V, 5mA. Plug-in auxiliary contacts are NO when installed on the left side and NC on the right. The power terminals are designed to be finger and back-of-hand safe, and the quick-view coil voltage and easy-change coil ensure user-friendly operation. Additionally, the low magnetic noise design results in quiet operation, making it an excellent choice for various lighting control needs.
