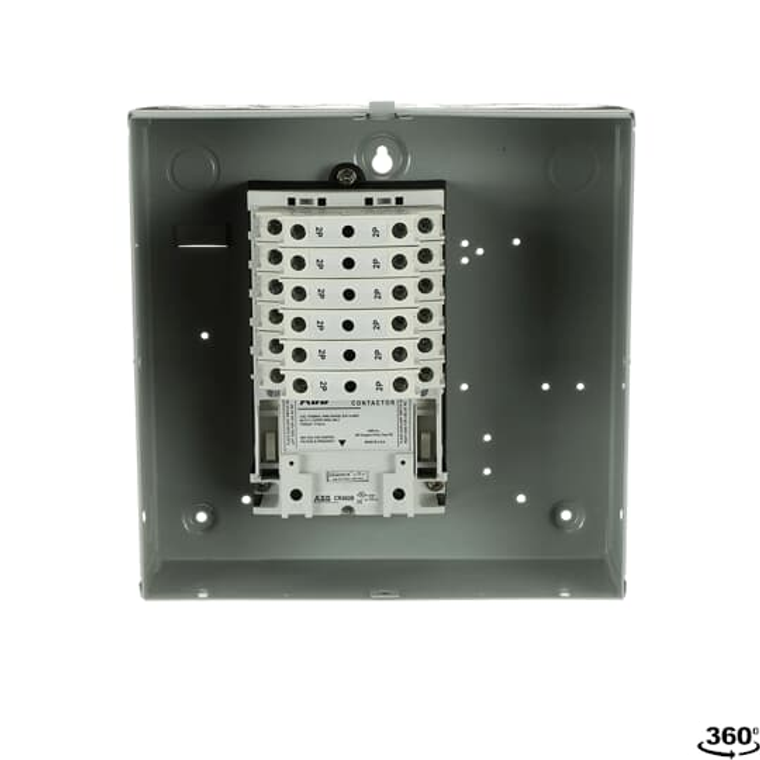

ABB CR463LD0ANA10A0 Lighting Contactor-Enclosed - Versatile 30A Solution with Easy Monitoring and Secure Installation

The ABB CR463LD0ANA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for managing lighting circuits. Designed with CR463L Electrically Held Contactors, this unit supports 30A across 2-12 poles, offering a wide range of circuit combinations with its standard assembled forms. The contact position indication feature allows for easy monitoring, as the button protrudes when the contact is closed. This contactor is engineered for convenience and durability, featuring robust pole terminals that accommodate up to two #8 AWG wires and a manual operator for straightforward control. The fast, sure three-point mounting system ensures secure installation, while the enclosed contacts provide resistance against contaminants, enhancing reliability. The contactor's power poles are adaptable, allowing for simple changes from normally open (NO) to normally closed (NC) configurations by unlatching and rotating 180°. Rated for various tasks, the power poles support 30A rated contacts, 15A motor rated, and A600 pilot duty rated applications. The easy-to-read rating label and auxiliary contacts, rated A600, are suitable for low-level circuits down to 12V, 5mA. Additional features include finger and back-of-hand safe power terminals, quick-view coil voltage, and an easy-change coil, all contributing to a low magnetic noise operation for a quieter environment. The combination slotted/#2 Phillips screws and convenient side access field power wiring further enhance the ease of installation and maintenance. Ideal for a range of lighting applications, the ABB CR463LD0ANA10A0 Lighting Contactor-Enclosed is a robust and efficient choice for ensuring reliable performance in demanding environments.
