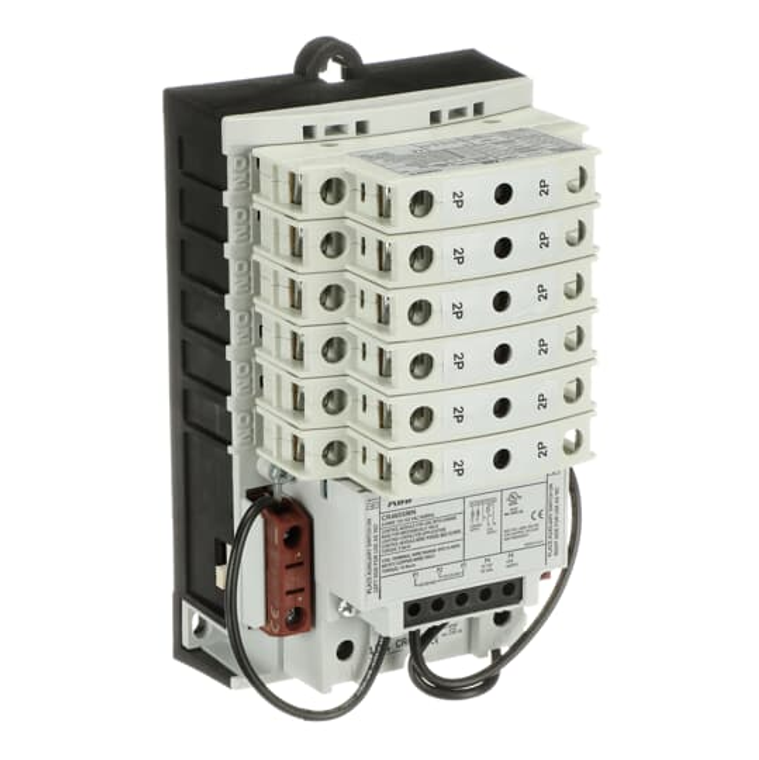

ABB CR463M20BJA Open 2 No 0 Nc 2W 24Ac In 120V Coil - Versatile Mechanically Held Contactor with Modular Design and Enhanced Safety Features
ABB
$1,080.00
The ABB CR463M20BJA is a versatile and reliable mechanically held contactor designed for a wide range of applications. Featuring a modular design, it allows for quick and easy on-site configuration with 2 to 12 power poles and a 30 amp rating. The snap-in auxiliary contacts and common components make it suitable for both electrically and mechanically held versions. This contactor is continuously rated with interchangeable coils and finger-safe terminals for enhanced safety. It includes a two-or-three-wire control module with low input VA, enabling long wire runs and minimizing frequent signals from faulty controllers. The contactor supports a wide range of input voltages, with four modules covering 24-277 VAC and 12-24 VDC. All modules are compatible with coil voltages from 24 VAC to 277 VAC. Clear labeling provides easy identification of control module rating, wire size, and torque. The field-configurable design allows for easy conversion from a standard electrically held contactor using simple kits of control modules, latch mechanisms, and auxiliary contacts. Ideal for applications requiring reliable contact status verification and built-in delays to prevent excessive signaling.
- Coil Voltage:
- 110V (50 Hz) /115-120 VAC (60 Hz)
- Spec Sheet:
- View
