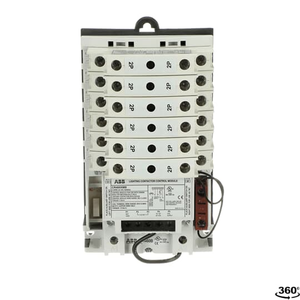

ABB CR463M20BNA Lighting Contactor-Open, 30 Amp, Modular Design, 2-12 Power Poles, Finger-Safe Terminals, Interchangeable Coils, 24-277 VAC/12-24 VDC Compatibility

The ABB CR463M20BNA Lighting Contactor-Open is a versatile and reliable solution for your lighting control needs. This product is part of the CR463M series of Mechanically Held Contactors, known for their standard assembled forms and modular design, allowing for quick and easy on-site configuration. With a 30 amp rating and the ability to accommodate 2-12 power poles, this contactor is designed to handle a variety of applications. It features snap-in auxiliary contacts and common components that are compatible with both electrically and mechanically held versions. The contactor is continuously rated and comes with interchangeable coils, ensuring long-lasting performance. Safety and convenience are prioritized with finger-safe terminals and a two-or-three-wire control module that supports low input VA, enabling long wire runs. The contactor also includes a feature to verify contact status and built-in delays to prevent frequent signals from faulty controllers. It supports a wide range of input voltages, with four modules covering from 24-277 VAC and 12-24 VDC, and all modules are compatible with coil voltages from 24 VAC-277 VAC. Clear labeling provides essential information on control module rating, wire size, and torque, making installation straightforward. The contactor can be field-configured from a standard electrically held contactor using simple, easy-to-install kits that include control modules, latch mechanisms, and auxiliary contacts. Ideal for lighting applications, this contactor is designed with 2NO - 0NC poles and a 2-wire - 277V coil configuration.
