ABB CR463M80CJA10A0 Lighting Contactor-Enclosed - Modular Design, 30 Amp Rating, Versatile Voltage Compatibility (24-277 VAC/12-24 VDC)
ABB
$2,434.09

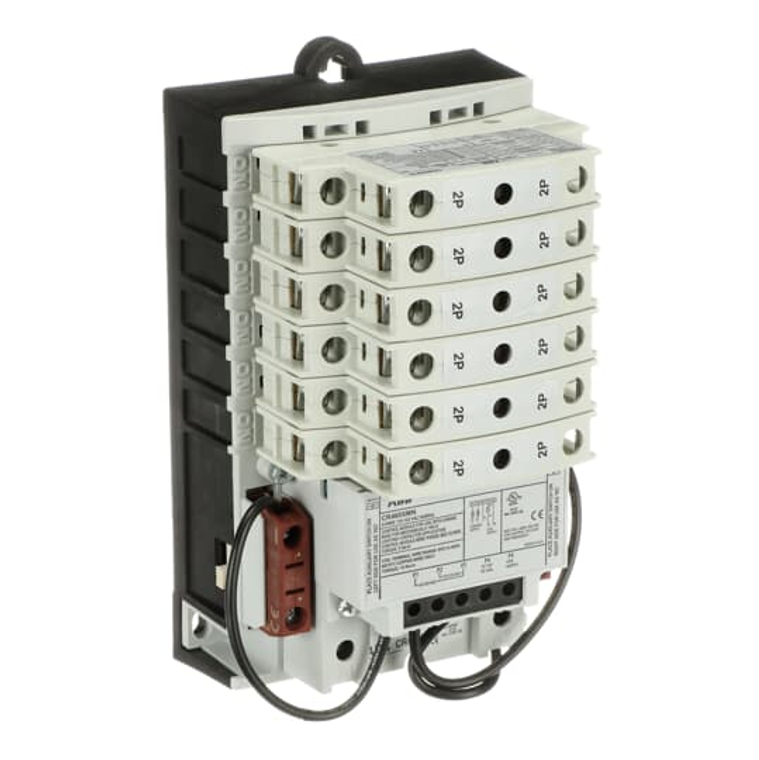

The ABB CR463M80CJA10A0 Lighting Contactor-Enclosed is a versatile and reliable solution for your lighting control needs. This contactor features a modular design that allows for quick and easy on-site configuration, accommodating 2 to 12 power poles with a 30 amp rating. It includes snap-in auxiliary contacts and utilizes common components for both electrically and mechanically held versions, ensuring flexibility and ease of use. The contactor is continuously rated with interchangeable coils and finger-safe terminals for enhanced safety. It supports two-or-three-wire control modules, with low input VA that permits long wire runs, and includes built-in delays to minimize frequent signals from faulty controllers. The contactor is compatible with a wide range of input voltages, covering 24-277 VAC and 12-24 VDC, and can be used with coil voltages from 24 VAC to 277 VAC. Clear labeling provides essential information on control module rating, wire size, and torque. Additionally, it is field configurable from a standard electrically held contactor with easy-to-install kits of control modules, latch mechanisms, and auxiliary contacts, making it an ideal choice for various lighting applications.
- Coil Voltage:
- 110V (50 Hz) /115-120 VAC (60 Hz)
- Spec Sheet:
- View
