ABB
Definite Purpose Contactors, DP Series

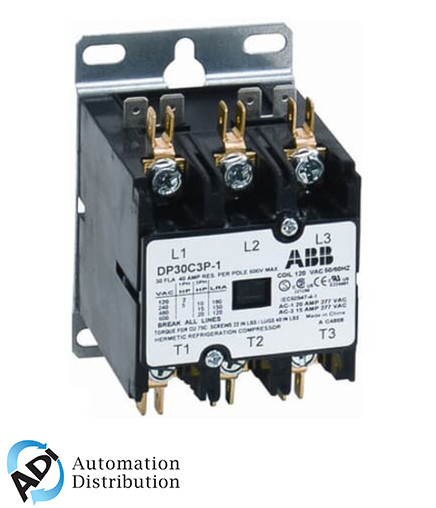

Item# DP30C3P-4 - DP Contactor, 3-P N/O, 480VAC, 30A, Definite Purpose, Open 40A Resistive Load
DP Series Information
- 24~575 VAC Coils
- Up to 25 HP @ 240V
- Up to 30 HP @ 480V
- UL; CE; IEC Agency Approvals
- Up to 75 Amps
- 1 to 4 Poles
- Double E Magnet Assembly
- Class B Coil
- Dual and Quad Quick Connects
Specifications
Item Number:
DP30C3P-4
UPC:
662019755625
Brand:
ABB
Item Category:
Contactors
Subcategory:
Definite Purpose
Series:
DP
Poles:
3 NO
Nominal Coil Voltage:
480 VAC
Coil Voltage:
480 VAC
Inductive Current Rating:
30 Amps
Enclosure:
Open
Termination:
Quick Connect;Screw
Max HP 200/208V 3 PH:
10 Horsepower
Max HP 230/240V 3PH:
10 Horsepower
Max HP 460/480V 3 PH:
15 Horsepower
Max HP 575/600V 3PH:
20 Horsepower
Max HP 120V 1 PH:
2 Horsepower
Max HP 230/240V 1PH:
5 Horsepower
Locked Rotor 240/277V:
180 Amps
Locked Rotor 480V:
150 Amps
Locked Rotor 600V:
120 Amps
Inductive Load 120V:
30 Amps
Inductive Load 200/208V:
30 Amps
Inductive Load 230/240V:
30 Amps
Inductive Load 460/480V:
30 Amps
Inductive Load 575/600V:
30 Amps
Resistive Rating:
40 Amps
Coil Type:
Magnetic
Frame Size:
30
Shunt:
No
DIN Mounting:
No
Approvals:
UL;CSA
H x W x D:
3.39 in x 3.09 in x 2.98 in
Net Weight:
15.6943 OZ
Gross Weight:
15.92 OZ
