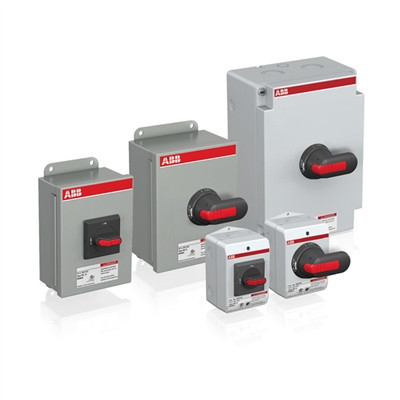

The ABB EOT63U3P4-1P1 is a robust enclosed disconnect switch from the EOT series, designed for reliable and safe operation in demanding environments. This switch features a 3-pole configuration and can handle currents up to 80 amps with a maximum voltage of 600V AC. It is housed in a durable thermoplastic/polycarbonate enclosure that ensures protection against wet and corrosive conditions.
Key features include a red/yellow pistol handle for easy operation, a touch-safe design, and a compact size that makes installation simple and quick. The switch is also equipped with one normally open auxiliary contact for enhanced functionality. It is UL508 listed and cUL approved, ensuring compliance with safety standards.
Ideal for use as a motor disconnect, this switch supports a maximum horsepower of 20 HP at 230/240V 3Ph and 40 HP at 460/480V 3Ph. It is designed for surface mounting and does not contain RoHS substances. The dimensions are 11.81 inches in height, 8.27 inches in width, and 7.12 inches in depth, with a net and gross weight of 1 lb each. This switch combines performance, safety, and ease of use, making it an excellent choice for industrial applications.
