Description
Overview
Jokab Safety
Light Curtains, Orion1 Series

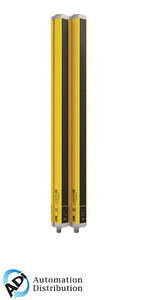

Item# 2Tla022302R0300 - Light Curtain, 600Mm Hgt, 30Mm Res, Orion1-4-30-060-E, Extended, Includes Transmitter And Receiver
Orion1 Series Information
- The Orion1 Base Light Curtains Are Used For Finger And Hand Detection, Usually Quite Close To The Dangerous Machine
- Finger And Hand Detection
- When The Light Guard Should Be Close To The Hazardous Zone
- When Repeated Access To The Machine Is Necessary, Manually Serviced Machines For Example
- For Area Protection (Horizontal Mounting) And Limitation Of Work Zones
- Finger And Hand Detection
- 6M And 19M Operating Devices
- Compact Dimensions
- Local Reset And Edm
- Type 4
Specifications
Item Number: &Nbsp;
2Tla022302R0300
Upc: &Nbsp;
888614437098
Brand:
Jokab Safety
Item Category:
Light Curtains
Series:
Orion1
Type:
Transmitter + Receiver
Protected Field (Height):
600 Millimeters
Resolution:
30Mm
Output Type:
Semiconductor
Supply Voltage:
24 Vdc
Operating Range:
6 To 19 Meters
Connection:
M12 Plug
En/Iec 61496-1/-2:
Type 4
Feedback Loop Monitoring:
No
Muting:
No
Blanking:
No
Cascadable:
No
Manual Reset:
Yes
Auto Reset:
Yes
Ingress Protection:
&Nbsp;
