Description
Overview
Jokab Safety
Light Curtains, Orion1 Series

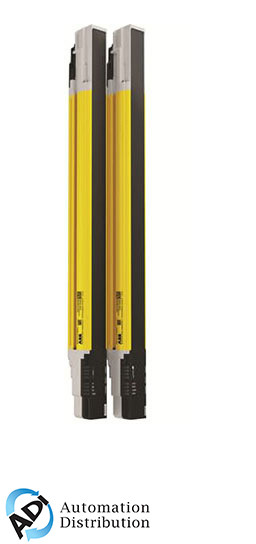

Item# 2Tla022303R0200 - Light Curtain, 450Mm Hgt, 30Mm Res, Orion1-4-14-045-E, Extended, Includes Transmitter And Receiver
Orion1 Series Information
- The Orion1 Base Light Curtains Are Used For Finger And Hand Detection, Usually Quite Close To The Dangerous Machine
- Finger And Hand Detection
- When The Light Guard Should Be Close To The Hazardous Zone
- When Repeated Access To The Machine Is Necessary, Manually Serviced Machines For Example
- For Area Protection (Horizontal Mounting) And Limitation Of Work Zones
- Finger And Hand Detection
- 6M And 19M Operating Devices
- Compact Dimensions
- Local Reset And Edm
- Type 4
Specifications
Item Number: &Nbsp;
2Tla022303R0200
Upc: &Nbsp;
888614436121
Brand:
Jokab Safety
Item Category:
Light Curtains
Series:
Orion1
Type:
Transmitter + Receiver
Protected Field (Height):
450 Millimeters
Resolution:
30Mm
Output Type:
Semiconductor
Supply Voltage:
24 Vdc
Operating Range:
7 To 20 Meters
Connection:
M12 Plug
En/Iec 61496-1/-2:
Type 4
Feedback Loop Monitoring:
No
Muting:
Yes
Blanking:
Yes
Cascadable:
Yes
Manual Reset:
Yes
Auto Reset:
Yes
Ingress Protection:
&Nbsp;
