Jokab Safety
Light Curtains, Orion2 Series

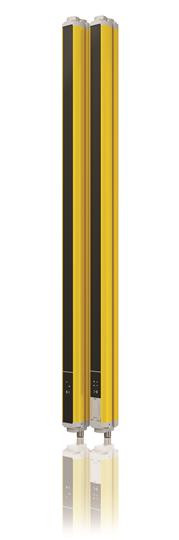

Item# 2Tla022304R0100 - Light Curtain, 800Mm Hgt, 3 Beam, Orion2-4-K3-080-B, Base, Includes Transitter And Receiver
Orion2 Series Information
- The Orion2 Base Light Grids Are Used For Body Detection, Usually For Access Protection. Their Long Operating Distance Makes Them Appropriate To Be Used With Deviating Mirrors
- For Body Protection
- Perimeter Protection
- When A Long Operating Distance Is Necessary, With Deviating Mirrors For Example
- Body Detection, 2 To 4 Beams
- Transmitter + Receiver Units
- 50M Operating Distance. Compact Dimensions
- Local Reset And Edm
- Type 4
Specifications
Item Number: &Nbsp;
2Tla022304R0100
Upc: &Nbsp;
888614436237
Brand:
Jokab Safety
Item Category:
Light Curtains
Series:
Orion2
Type:
Transmitter + Receiver
Protected Field (Height):
800 Millimeters
Resolution:
3 Beam
Output Type:
Semiconductor
Supply Voltage:
24 Vdc
Operating Range:
50 Meters
Connection:
M12 Plug
En/Iec 61496-1/-2:
Type 4
Feedback Loop Monitoring:
No
Muting:
No
Blanking:
No
Cascadable:
No
Manual Reset:
Yes
Auto Reset:
Yes
Ingress Protection:
&Nbsp;
