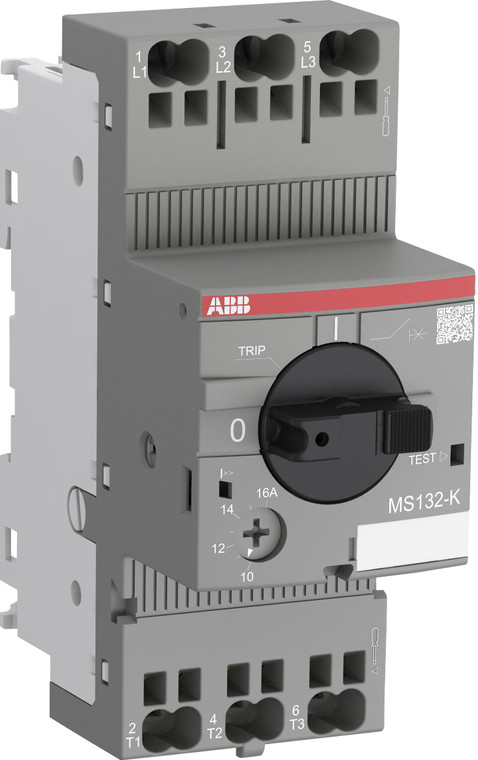

ABB MS132-1.6K 3P Manual Motor Starter with Push-in Terminals, 1.0-1.6A Range, 100 kA Breaking Capacity at 400 VAC
ABB
$188.37
The ABB MS132-1.6K 3P Mmp Pi 1.0-1.6A Range is a versatile manual motor starter designed for efficient motor control and protection. With a compact 45 mm width, it supports a rated operational current of 1.60 A and features convenient Push-in spring terminals. This device ensures reliable motor protection against short-circuits, overloads, and phase failures without the need for a fuse. It boasts a rated service short-circuit breaking capacity of 100 kA at 400 VAC and adheres to trip class 10 standards. Key features include a built-in disconnect function, temperature compensation, a trip-free mechanism, and a rotary handle with clear switch position indication. Suitable for both three- and single-phase applications, the handle is lockable to prevent unauthorized adjustments. Enhance functionality with available accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, and terminal spacers.
