ABB MS132-20K 3P Manual Motor Starter, 16.0-20.0A Range, Push-in Terminals, 100 kA Breaking Capacity at 400 VAC
ABB
$233.62
(No reviews yet)
Write a Review
Write a Review
ABB
ABB MS132-20K 3P Manual Motor Starter, 16.0-20.0A Range, Push-in Terminals, 100 kA Breaking Capacity at 400 VAC

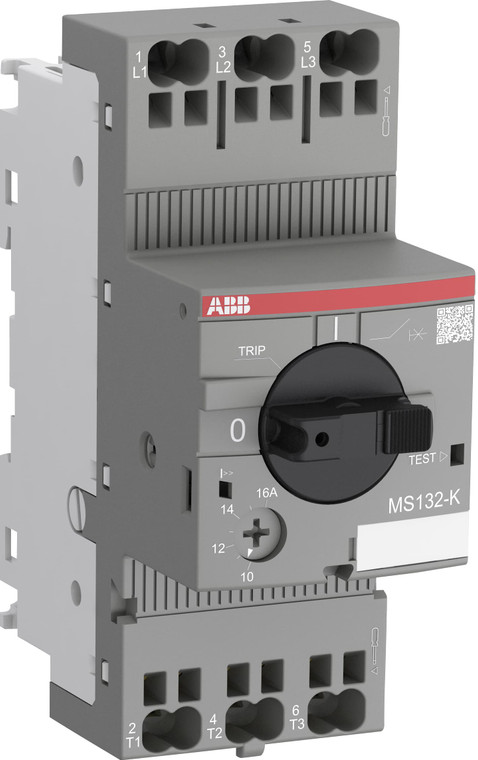

The ABB MS132-20K 3P Mmp Pi 16.0-20.0A Range is a versatile manual motor starter designed for efficient motor control and protection. With a compact 45 mm width, it supports a rated operational current of 20.0 A and features Push-in spring terminals for easy installation. This device ensures reliable protection against short-circuits, overloads, and phase failures without the need for a fuse. It boasts a rated service short-circuit breaking capacity of 100 kA at 400 VAC and adheres to trip class 10 standards. Key features include a built-in disconnect function, temperature compensation, a trip-free mechanism, and a rotary handle with clear switch position indication. Suitable for both three- and single-phase applications, the handle is lockable to prevent unauthorized adjustments. Enhance functionality with available accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, and terminal spacers.
