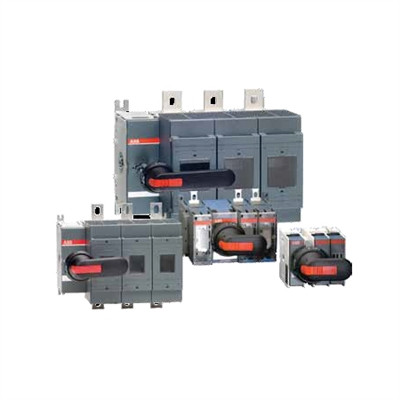

The ABB OS400J04F is a robust 4-pole, 400A/600V fusible disconnect switch from the Powerline Series, designed to meet diverse industrial needs with high interrupting capacity and long electrical life. This switch is ideal for applications requiring reliable performance in extreme environments, from tropical heat to arctic cold. It features a wide range of international fuse clip options including UL, CSA, DIN, BS, NFC, and ultra-rapid types, ensuring compatibility across various standards.
Key features include a high-performance quick-make/quick-break mechanism, door interlock, and full fuse isolation when in the off position. The switch is also padlockable for enhanced safety. It supports flange-mounted, rotary through-door, or motorized operation, making it versatile for different installation needs. The Powerline series offers options from 2 to 8 poles and amperage sizes ranging from 30A to 800A, all in a compact design that maximizes panel space efficiency.
Safety is prioritized with UL/CSA and/or IEC approval ratings, and the switch is capable of handling up to 350 horsepower at 600V in a 3-phase system. It is designed for panel mounting and has a flange operator type. The unit weighs approximately 18 pounds, highlighting its solid construction and durability. Ideal for rugged industrial settings, the ABB OS400J04F disconnect switch ensures operational excellence and safety.
